Goodridge G-Max 825-Series Hose

Features:

• Low Cost ! Up to 50% Savings compared to the premium G-Line Hose
• Extremely Lightweight, 40% lighter than rubber core hose, 10% larger diameter and flows 20% more volume than the conventional rubber core hose
• A single 100% PTFE lined core that is compatible with all types of chemical including ethanol, methanol, nitro methane and alcohol.  The # 1 choice of all professional race teams around the world.
• ZERO Vapour Loss with all types of fuel including Ethanol, alcohol even E-85 fuel.   No more fuel smell inside your cockpit !

Goodridge brand new G-Max hose is another first for Goodridge and our industry. Constructed with 100% PTFE single core and polyester braid G-Max hose is 40% lighter than rubber core hose. Combined with up to 10% larger ID, and 20% more flow potential than rubber hose G-Max is the choice for you when the ultimate performance is demanded from a limited budget.

G-Max is compatible with all fuels, including methanol, alcohol and E-85 with no vapour loss, and can be used with our newly developed 711 crimp style fittings and our exclusive patented 811 reusable fittings. Factory assembled or self-assembled, G-Max hose is set to revolutionise the motorsport world. G-Max hose is for use in non-vacuum applications.

Application:
Fuel, Oil, Water, Methanol, Air

Temperature Range:
-40°C to +110°C
-40°F to +230°F

Material:
Anti-Static PTFE Smoothbore, Polyester Braid.

Fittings:
Compatible with 711 (crimped) and 811 (re-usable) Fittings.

The G-max 825-series hose has all the flexibility and flow rate advantages of any premium G-Line XF premium hose at 50% of the cost. Compatible with new 711 Crimped or the revolutionary 811 series Re-usable fittings.  No need to have the expensive crimping/swaging machine ! you can build and assemble your hoses at home or at the track without the need of any special tooling.

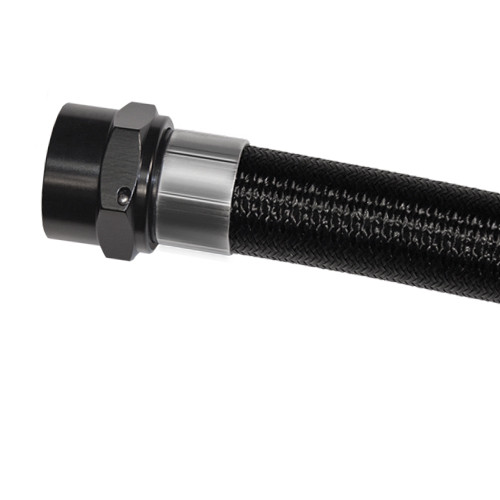

NOTE:  Due to manufacturing limitation, each of the PTFE lined core is only available in 20 feet (240") increment.  At every 20 feet, each hose assembly must be terminated with a hose end and an union may be used to extend the length required.    Image showing the hose end is for illustration purpose only, hose ends are sold separately

Sold per foot increment
