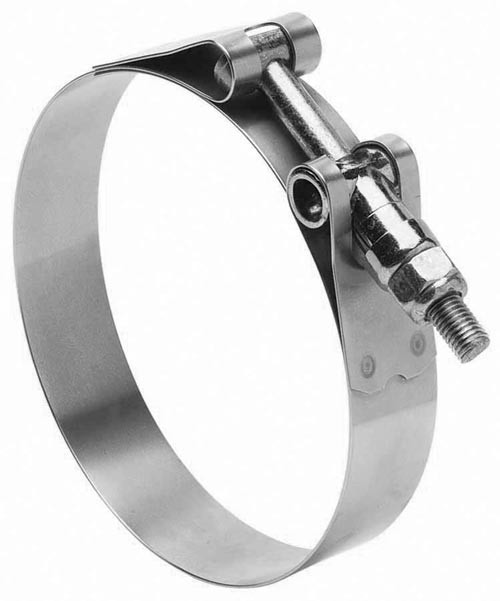

Ideal Heavy Duty T-bolt clamps provide uniform sealing pressure for a positive and reliable seal.   One simple nut to release the clamping power.

Specifically designed for use in high vibration, high pressure and large diameter applications.  Typical applications include all turbocharged application, all motor application as well as nitrous application.   Don't be stuck on the side of the road with a blown off intercooler pipe !  Trust the # 1 leader in T-Bolt Clamps.

All T-bolt clamps are sized according to your piping outside diameter.  If you have a 2.5" Outside Diameter piping, then order the T-Bolt clamp for 2.50" piping

Material Specifications

T-Bolt Standard Design
Band/Bridge: 3/4" width, 201/301 stainless steel.
Bolt: 1/4" - 28 plated steel.
Nut: 7/16" hex, nylon insert, plated steel locknut.
Trunnion: Plated steel.
Installation torque for all standard and channel bridge T-bolts is 75.0 in-lb/8.5 Nm
