Engine/Transmission Application:

• 2008 - 2009 BMW 135I (3.0L Twin Turbo N54, US Model)

Clutch Masters clutches are TRUE HIGH Performance Clutch Systems and are technologically superior to anything currently on the market.

To develop a clutch with all the desired performance characteristics for intended applications is the challenge of a high performance clutch company. The Clutch Masters clutch system is unique in the industry. We use Hi-Leverage^tm technology (refer to the Pressure Plate section) in our pressure plates, which significantly increases clamping force with no unnecessary increase in pedal pressure. Discs are designed either with reduced Marcel or a solid hub design to take advantage of our Hi-Leverage^tmpressure plate. The combination of these cutting edge technologies creates the finest clutch system on the market.

Clutch Masters, with over 28 years in the industry, has researched hundreds of friction materials and uses only the best materials available for each intended application. By combining the optimum clamping force with the finest friction materials - each with their own unique coefficient of friction - Clutch Masters has developed a line of clutches that provide ultimate performance in virtually any severe environment.

The Clutch Masters Single Disk System comes in two different Pressure Plates.

Power Plus I^tm pressure plates

• Hi-Leverage pressure plate design
• Precision Heat Treated single diaphragm*
• Re-arched diaphragm for superior disengagement*
• Ductile Iron pressure plate*
• Heavy-duty straps
• Very high clamping force
• No unnecessary increase in pedal pressure

Power Plus II^tm pressure plates

• Hi-Leverage plate design
• Precision Heat-Treated multiple diaphragms
• Special friction-reducing material between the diaphragms to eliminate diaphragm binding
• Made from Ductile Iron when called for Heavy-duty straps
• Exceptionally high clamping force
• Heavy pedal pressure

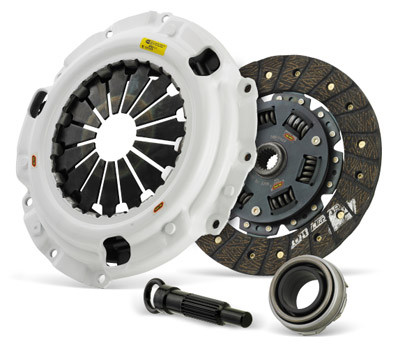

**All stages come as a complete kit including disc, pressure plate, throwout bearing, pilot bearing (when applicable), and alignment tool.  Individual components available upon request.

NOTE: Images are for illustration purpose only, your actual product may differ depending on the make and model of your vehicle

FX100 - The FX100 System uses the Power Plus I Pressure Plate with a custom heavy-duty Steel Back Organic friction disc. This clutch is engineered for heavy-duty street use. It is specifically designed for extended wear and additional clamping force for the enthusiast who has added an exhaust system, an intake system, up to 50hp NO2 upgrade, or other non-forced induction external bolt-ons. It features only slightly increased pedal pressure, longer life than stock, and normal clutch feel during engagement and disengagement for a very smooth operation.

The FX200 System uses the Power Plus I Pressure Plate and a Steel Backed Kevlar disc. This clutch is designed for the street enthusiast or weekend racer. The FX200 offers similar torque holding capacity to the FX100, however, its life expectancy is increased 2-3 times with the Kevlar disc. Our Kevlar friction material is non-abrasive and doesn't score the mating surfaces. It features only slightly increased pedal pressure, significantly longer life than stock, and normal clutch feel during engagement and disengagement for the smoothest operation of any stage we offer.

The FX300 System uses the Power Plus I Pressure Plate with a Steel Back Segmented Kevlar disc. This clutch is designed for the ultimate street enthusiast or weekend racer running a normally aspirated car equipped with cylinder head work and/or hotter cam(s), or with medium-boost turbo or super-charger, or up to 100hp NO2. The FX300 features only slightly increased pedal pressure, long life disc and positive engagement.

The FX400 System uses the Power Plus I Pressure Plate with a custom, extremely durable, Sprung Ceramic disc. This is the ultimate extreme duty street and/or road/drag racing system. It is available in a 4 or 6 wing (paddle) configuration, with the 4-wing being the more aggressive setup (please specify which type you prefer). The sprung hub design allows for moderate dampening in high-torque applications, rendering it much more streetable than solid or rigid designs. This disc is designed for long life, outstanding holding capacity, and rapid heat dissipation.
Warning: Due to the solid (no Marcel) friction rivet design, the FX400 disc engages very quickly and may chatter slightly in first and reverse. To help alleviate this problem, we only use premium ceramic friction material.

The versatile FX500 System uses either the Power Plus I or Power Plus II Pressure Plate along with a solid center 4 or 6 wing (paddle) Ceramic Button disc. It is designed for maximum holding capacity with no compromises.

Warning: The FX500 is a Solid Hub (rigid) disc that engages and disengages instantly. This is a Race Only clutch

Clutch Masters is proud to introduce the finest and most economical multi-plate clutch systems available for today’s high performance vehicles, the 725 and 850 Series.

Clutch Masters Twin Disc systems are pure racing technology that also works well in high performance street applications. They are designed to hold tremendous horsepower and torque ratings, while retaining a very smooth operation.  By slightly increasing the clamping force of the pressure plate and adding to the square inches of usable disc area, CM Twin Discs significantly increase clamping values with only a 25-50% increase in pedal pressure depending on the application.

The cover assembly is machined from billet aluminum with 25% more tensile strength than the competition’s cast unit.

The flywheel is machined from billet 6061-T6 aluminum to meet SFI spec 1.2 for competition in NHRA, NDRA, IDRC, IHRA, SCCA and NASA. Each aluminum flywheel includes a replaceable heat shield.  Steel flywheels are also available on select applications.


The 725 series is a smaller diameter assembly (7.25"), which creates less rotating mass plus offering quicker and smoother shifting with much better throttle response.
